Call Christine for a price quote today
♦High Quality Steel Construction
♦Powdered Coated Safety Red, Yellow or White (custom colors available)
♦Lightweight Aluminum Boom Arm - Powdered coated white with a 10 Year Red and White Reflective Conspicuity Tape on both sides/full length of the barrier arm for maximum visibility
♦Counter Balanced for Easy Lift - Perfectly balanced for length of arm ordered
♦Quiet Stop Rubber Bumpers, bolts on and is easily replaced when needed Cushions the stop when raising and when lowering the boom arm
♦Chemical and Weather Resistant Foam Rubber Grip Comfort Handle
♦Locking Hasp that accepts your padlock in both the Up and Down Position
♦Surface Mount

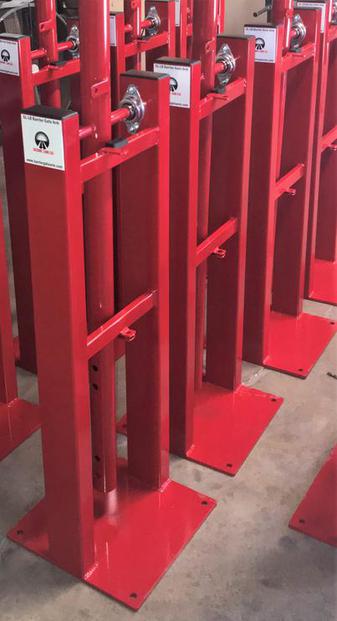

Model SL-LB
Secure Lane Lift Barrier Arm
Manual Lift - Rising Barrier Gate Arm
Affordable & Easy to Install
Control Your Vehicle Access Entries & Exits

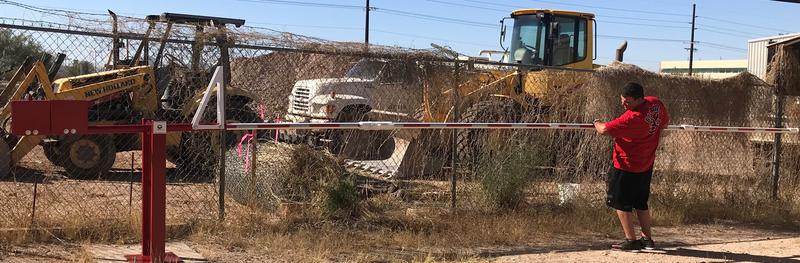

Model SL-LB in a 12 ft, 16 ft, 20 ft, 25 ft & 30 ft.
Visit our other site
www.barriergatearm.com for more info
All Models 20 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable and custom made coupling clamp.
Need a 12 footer? Maybe a 20 footer?
Hey, guess what? We even have a 30 footer.
We have you covered!!!
Support Post or Pendulum Support is required for arms over 16 feet
- Available in arm lengths 12 feet through 30 feet
- Pendulum Support or Lift Barrier Receiving Tip Support Post required for arms over 16 feet
- Cable Truss Support is included on all arms 20 feet and over
- Heavy Duty Steel Construction (all welding by AWS Certified Welders)
- Round
Aluminum Arm is Powder Coated White and has an 11" Red / 7" White DOT-C2
ORALIT(Reflexite) Reflective Conspicuity Tape on both sides/full
length of the barrier arm. 10 Year Tape
- 42" to top of barrier arm
- Standard Color is Safety Red - Other color choices are available for an affordable "upgrade fee"
- Surface Mounted
- 15" X 15" X 3/8" Base plates - pre drilled for surface fixing
- Barrier Arms are affordable and easily replaced. Just call, order and we will ship to you
- Barrier Arms Longer than 12 feet - Arm Sections are Sleeved together with an Aluminum tube insert and secured with bolts, the sleeve is perfectly machined to fit snug so there is no movement within the sleeved arm sections and the barrier arm is the same diameter from end to end

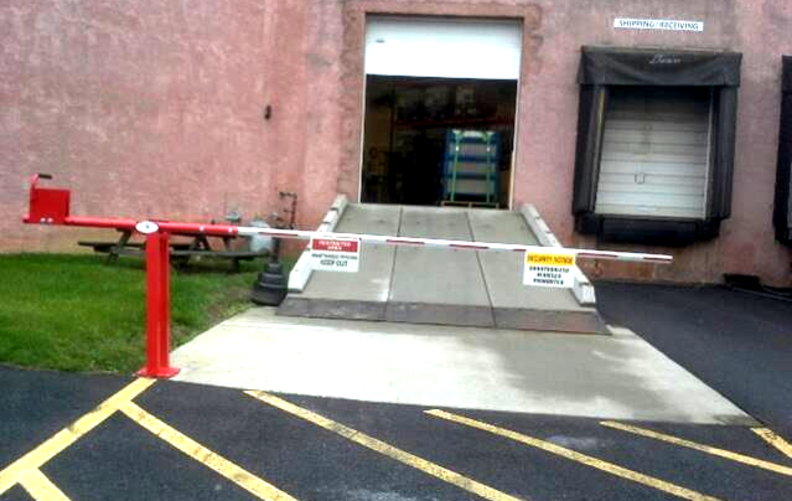

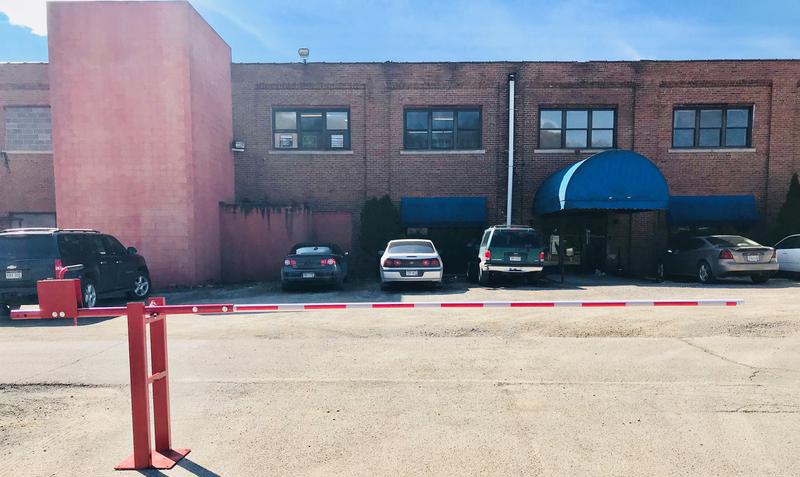

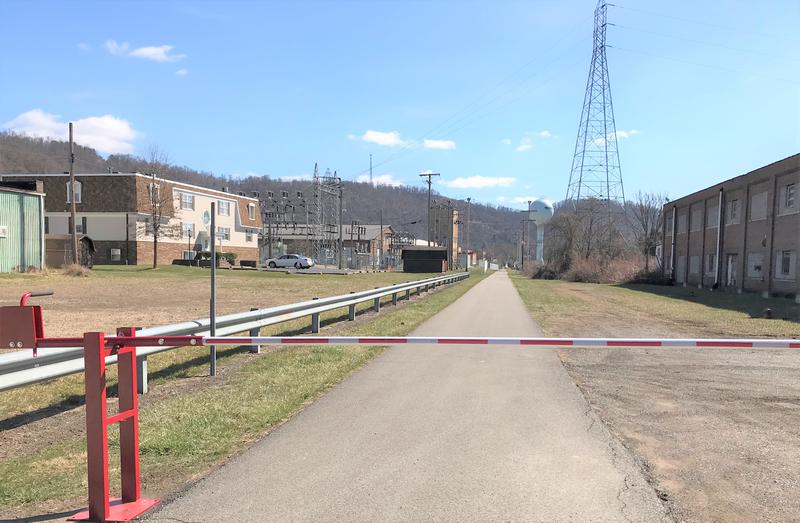

Manually Operated Rising Lift Barrier Gate Arm

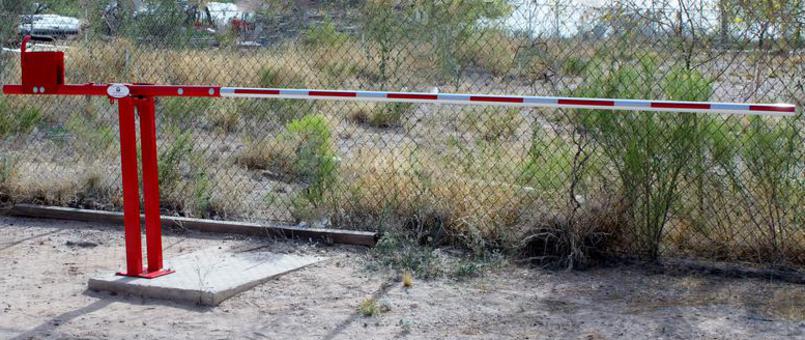

MANUAL LIFT BARRIER GATE with ALUMINUM ARM

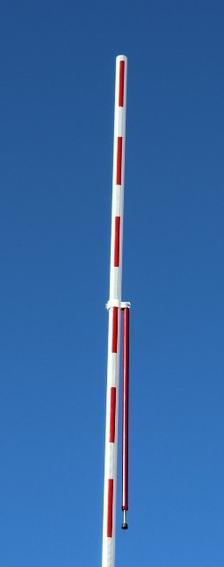

Our Pendulum Support Posts are adjustable.
Model SL-LB: Barrier Arm Length Available in 12', 16' & 20', 25' and 30'
A pendulum support or receiving tip support post is required for arms over 16 feet
All Models 20 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable and custom made coupling clamp.
We ship anywhere you need it to go. USA or Worldwide!

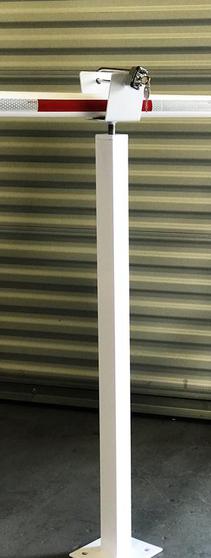

Resting Post
or Tip Receiving Post (Height Adjustable)
A Pendulum Support Post or a Tip Receiving Post is Required on barrier arms over 16 feet
A Pendulum Support Post or a Tip Receiving Post is Required on barrier arms over 16 feet
United States of America United Kingdom France Singapore Bangladesh Morocco Peru Cyprus Mexico Denmark Japan Netherlands Bulgaria Guatemala Grenada Malta Canada Dominican Republic Austria Belgium Poland Bahrain Norway Nicaragua Greece Italy Israel Honduras Costa Rica Latvia Estonia Panama Taiwan Ireland Slovenia Czech Republic El Salvador Lithuania Montserrat Cyprus Switzerland Korea, Republic of Spain Portugal Colombia Iceland Sierra Leone Malta Germany Hong Kong Saint Kitts and Nevis Finland Romania Mali Chile Nicaragua Australia Sweden Hungary Haiti Cambodia Slovakia Uganda

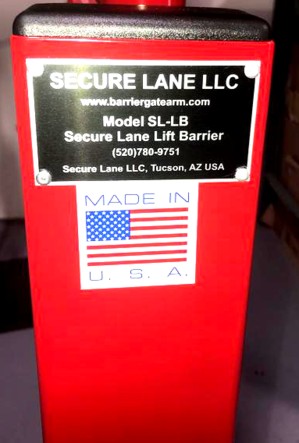

Model SL-LB (Secure Lane-Lift Barrier)
Model SL-LB-12,16,20,25,30 & 30

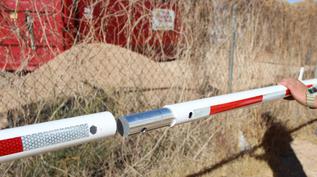

Machined aluminum insert sleeves connect arm sections together and then are bolted together with provided hardware through the pre drilled holes. .
Mounting Suggestions for the SL-LB Manual Lift Barrier Gate Arm
Please consult with an engineer for the best advice on mounting pads. As soil conditions are always different.
15" X 15" Wide Base
♦ Prevent vehicles from proceeding through an entry or exit.
♦No electricity source is required at the site.
♦Counter balanced technology eases the effort required for lifting the gate arm.
♦ Barrier Arm can be locked by padlock in the up or down positions for added security and safety.
♦Easy to install with the pre drilled mounting plate. Simply bolt to the concrete roadway or a concrete pad
YOUR SL-LB MANUAL LIFT BARRIER GATE ARM WILL ARRIVE WITH WEIGHT PLATES ATTACHED TO THE BASE UNIT THAT CORRESPOND WITH THE LENGTH OF BARRIER ARM ORDERED. IF YOU EVER WANT TO ADD A LONGER ARM, WE CAN SIMPLY SHIP ARM SECTIONS, CONNECTING SLEEVES, PENDULUM SUPPORTS, CABLE TRUSS SUPPORTS AND ADDITIONAL WEIGHT PLATES TO EASILY RECONFIGURE YOUR SL-LB UNIT INCREASING THE SIZE UP TO 30 FEET IN LENGTH
Surface mounted plate with 4 pre- drilled 5/8” diameter bolt holes. The mounting plate is 15” X 15” and 1” in from edges gives you center of the bolt holes.
Mount on to concrete or build a concrete pad and use four 1/2" diameter and 6" to 8" long concrete anchors. (j bolts, or LDT) Anchor bolts for mounting plate to concrete are not included
This base needs to be bolted on to a concrete surface or a concrete pad. Be sure that the concrete is cured before drilling the bolt holes in to it. Or pre- make the pad with wet set anchor bolts.
A 20” X 20” pad is usually a sufficient size and should be at least 8" thick. Reinforce using 8 #4 rebar evenly spaced in every direction. Make sure concrete is 2" or more over the rebar. Use a 3 to 4000 psi concrete.
You can also opt to use a drop-in anchor so that you can easily unbolt from the pad and move the unit to another pad and back again. Such as, CONFAST® Drop-in Anchors.
Or you can build portable concrete pads that can be moved around by a fork lift.
Please check with a structural engineer as this build idea is only a suggestion.
Portable pad:
Should be at least 36” X 36” and 8” thick or more.
The portable concrete pad would require 2 forklift slots. 2” high by 8” wide slots in the concrete pad that would accept the fork lift forks for moving the concrete pad.
4000 psi concrete should be used. 8 #4 rebar, 4 in each direction evenly spaced with a minimum of 2” of concrete over the rebar.
Wet set four ½” diameter J bolt concrete anchors or check with an expert about curing time before drilling anchors in to the concrete.
Support Post or Pendulum Support is required for arms over 16 feet

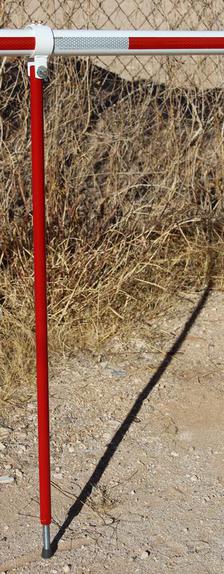

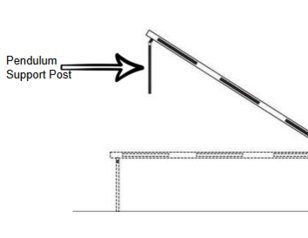

Pendulum Support Post
